Sports Radar SRDL-1838-KIT Radar Gun and 18 Inch Display Kit

The Sports Radar SRDL-1838-KIT is the top of the Sports Radar display line: the SR3800 radar gun matched to an 18 inch red LED board that reads up to 199 and stays legible from about 1,000 feet, day or night. The gun reads a baseball to roughly 130 feet, works through chain link and reports both release speed and speed at the plate, so it can be operated from behind the backstop while the number goes up for an entire grandstand.

The 12V 5 amp power adapter and a 25 foot cable come with it. The link from gun to board is a plain CAT5 run and a serial protocol, so nothing in the setup depends on a phone, a pairing or a subscription.

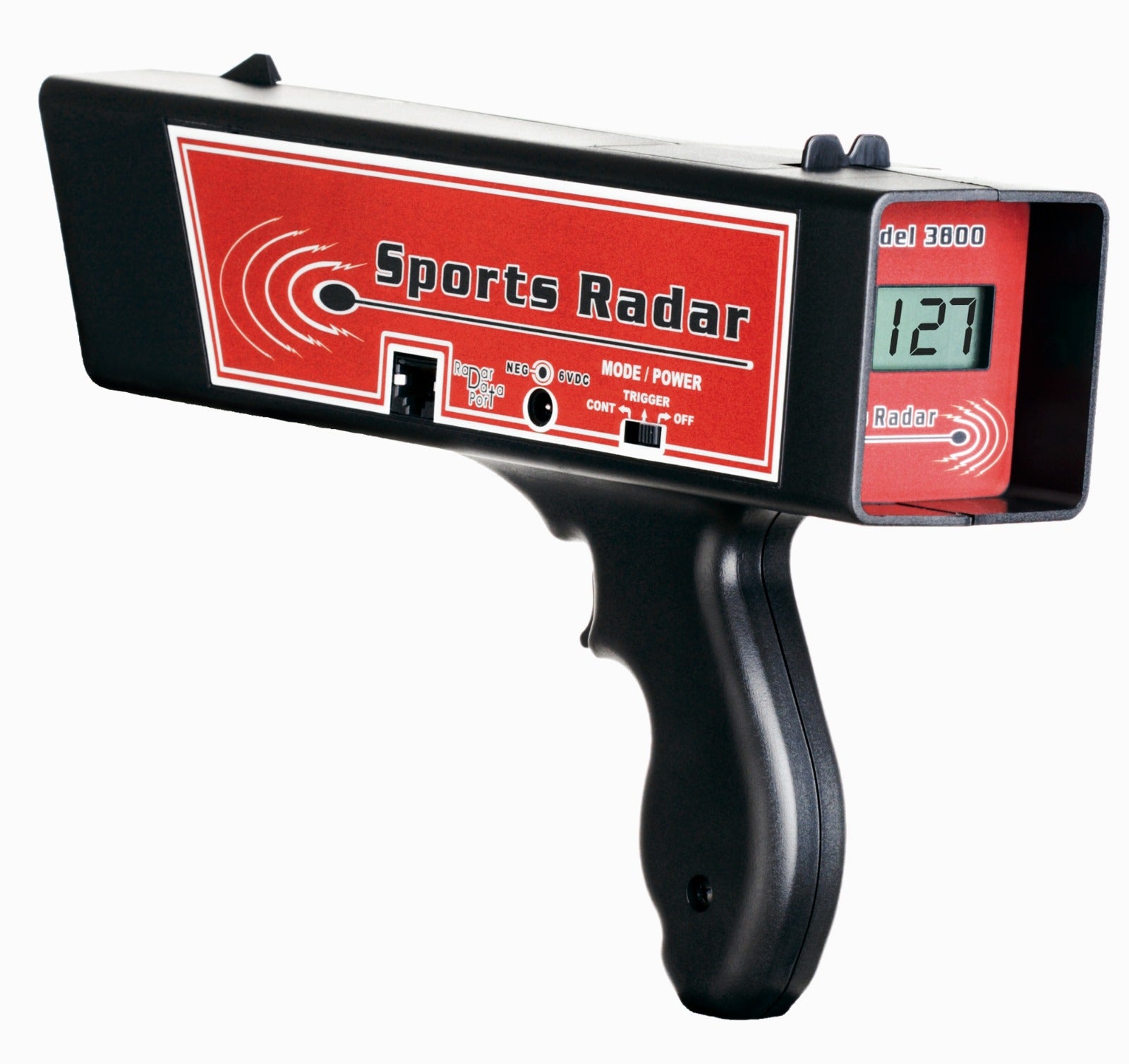

What the SR3800 Brings to the SRDL-1838-KIT

The SR3800 covers 10 to 250 MPH at 1 MPH resolution, reads a baseball to about 130 feet at the nF1 noise filter setting and performs best between 30 and 100 MPH. Reading through chain link is the practical difference on a game field: the operator stays behind the backstop and still gets the number.

Pull and release the trigger for the fastest speed on a pitch. Pull and hold and the gun captures two readings from the same throw, toggling between the speed at release and the speed as the ball crosses the plate. A nine step noise filter, nF1 through nF9, trades range for interference rejection near lights, motors and other radar, and every preference the gun is set to, including whether the beeper sounds, is remembered between sessions.

The same board is available with the shorter range SR3600 as the SRDL-1836-KIT. The board is identical in both; the gun is the whole difference.

An 18 Inch Board That Reads to 199

The 18 inch red LED display uses two and a half digits: a half height leading one ahead of two full digits, which lifts the ceiling from 99 to 199. That matters for elite showcase readings above 100 and for lacrosse and hockey shot speeds, and it means a fast pitch never rolls the board over into a meaningless number.

At 18 inches tall the digits carry about 1,000 feet in daylight or under lights, which covers a full grandstand, an outfield fence line or the far side of a multi field complex. This is the longest viewing distance available anywhere in the line.

Auto Dimming and Outdoor Construction

This is the only display in the line with an automatic dimming sensor, so the same board that reads through afternoon glare does not become a spotlight once the lights come on. Nothing gets switched between a day game and a night game.

The enclosure is .090 aluminum with a white powder coat, a 1/8 inch red plexiglass cover over the digits and a velvet text overlay that resists scratches, dust and fingerprints. Hangers are installed on the back, and the data connection is a single CAT5 and RJ45 port.

Planning the Installation

One data port means one radar source, so this board reads from the gun it is wired to. Where several radars need to feed one display, the DL834 in the SRDL-838-KIT takes four inputs and shows the fastest speed received.

The included 25 foot cable covers a short run. CAT5 extenders in 25 and 50 foot lengths stack to a 100 foot maximum run between the radar and the display with a coupler at each join. Because of the size and weight of a board like this, the mounting structure should be planned with the installer before anything is fixed to a wall, a pole or a fence.

Who This Radar Gun Kit Is For

Flagship installations at stadiums and large baseball complexes. Elite showcases and combines where release and plate speeds are recorded and the crowd expects to see them. Tournament venues where the audience sits well beyond the reach of an 8 inch board. Programs that want the longest viewing distance and the longest gun reach in the line, in one matched package.

For portable use, a booth or an indoor cage, the smaller kits make more sense: the SRDL-38-KIT pairs this same gun with a 4 inch display and the SRDL-838-KIT pairs it with an 8 inch one.

Sports Radar SRDL-1838-KIT Specifications

• Radar gun: SR3800 with RadarDataPort serial output
• Gun speed range: 10 to 250 MPH (16 to 403 Km/H), MPH or Km/H selectable
• Gun range on a ball: 130 feet at the nF1 noise filter setting, strongest between 30 and 100 MPH
• Gun accuracy: 1 MPH resolution
• Radar band: X band 10.525 GHz
• Gun readout: 3 digit LCD
• Gun modes: trigger for fastest speed, trigger held for release plus plate speed, and continuous at up to 2 speeds per second
• Noise filter: nF1 through nF9, default nF2 at power up
• Gun dimensions: 10-3/4 in long x 2-3/4 in wide x 7-1/4 in high, 0.85 lb
• Gun power: two 9V alkaline batteries or a wall adapter through the external power jack
• Gun battery life: up to 12 hours continuous, typically 60 hours in trigger mode
• Gun operating temperature: -10 to 130 F
• Display: DL1812.5, two and a half red LED digits 18 inches tall
• Display range: reads up to 199 MPH or Km/H
• Display viewing distance: about 1,000 feet, day or night
• Display brightness: automatic dimming sensor
• Display construction: .090 aluminum with white powder coat, 1/8 inch red plexiglass cover, velvet text overlay
• Display data inputs: 1, CAT5 and RJ45
• Display power: WA-12VDC 5 amp adapter included
• Display mounting: hangers installed on the back of the unit
• Cable: 25 foot RJ45
• 1 year limited warranty
• Made in the USA

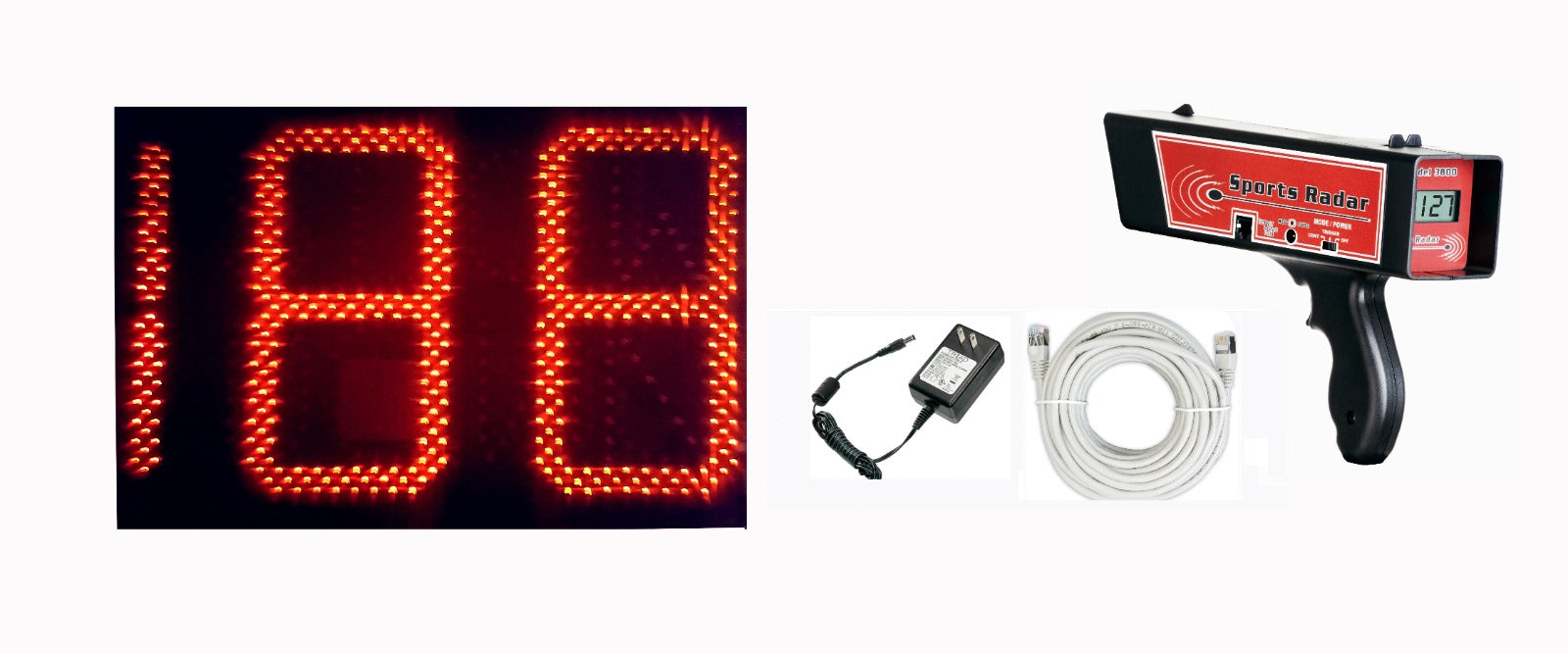

What's Included

• SR3800 radar gun
• DL1812.5 red LED display with 18 inch digits
• WA-12VDC 5 amp power adapter

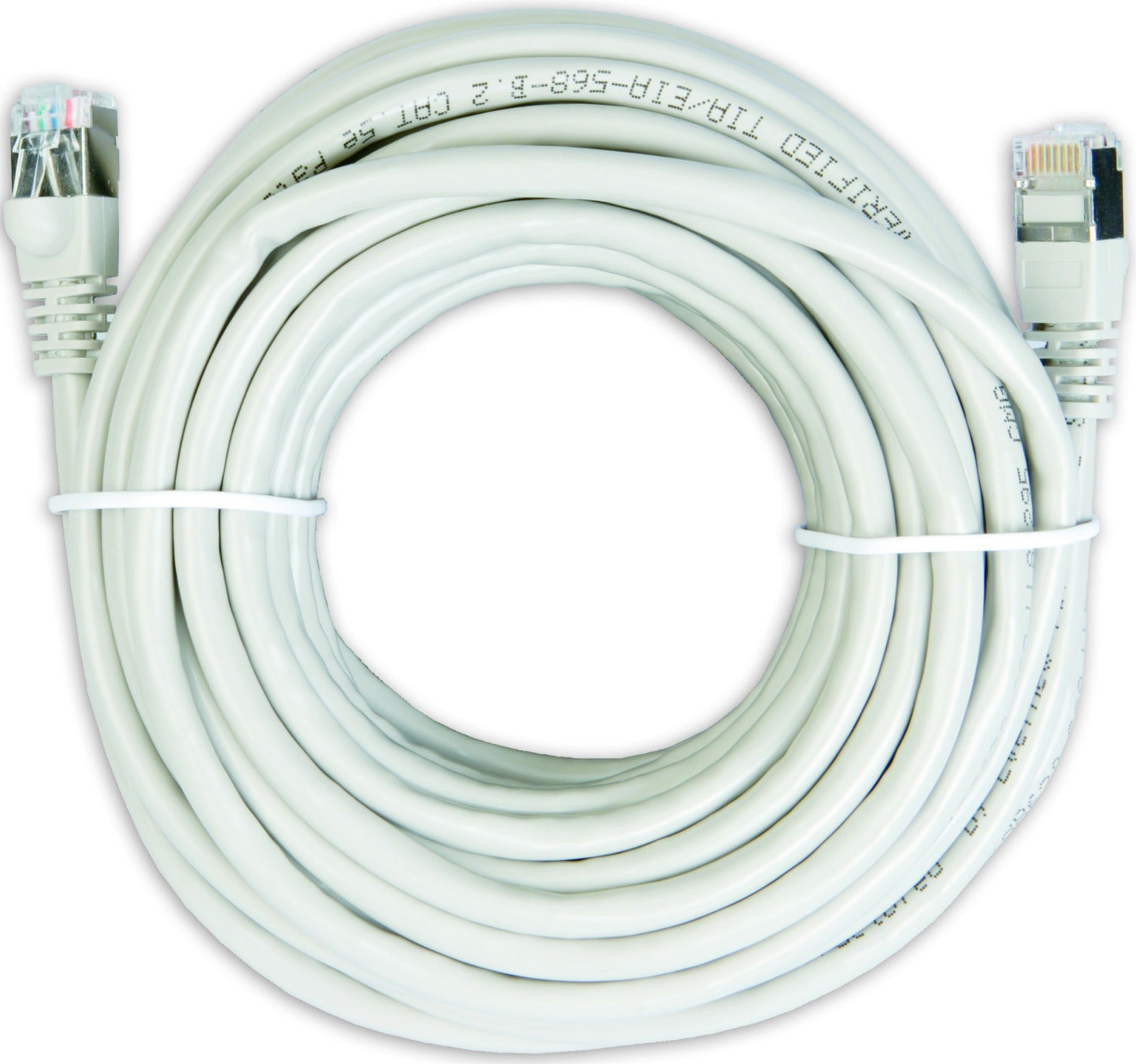

• 25 foot RJ45 cable

Batteries are not included. The 12V adapter in the kit powers the display, and the gun runs on two standard 9V alkaline cells or from its own wall adapter through the external power jack. A tripod and a tuning fork are separate items.

Frequently Asked Questions

What makes this the top kit in the line?

It combines the longest reaching gun with the largest display. The SR3800 reads a baseball to about 130 feet through chain link and gives release and plate speeds; the 18 inch board reads to 199 and carries about 1,000 feet. No other pairing in the line does both.

Does the display read speeds over 99?

Yes, to 199. The half height leading digit is what provides the headroom, so a reading over 100 shows correctly instead of rolling the board over.

Can I clock from behind the backstop?

Yes. The SR3800 reads through chain link and has the range to cover a full size field from behind the plate. Keep the gun near the line of the ball's flight, since a reading taken from an angle comes back low.

Will the board be too bright at night?

No. It is the only display in the line with an automatic dimming sensor, which drops brightness as the light falls without anyone touching a setting.

Can two guns feed this display?

No. The large format boards have a single data port. For several radars on one board, use the four input DL834 in the SRDL-838-KIT, which displays the fastest speed it receives.

How far can the display sit from the gun?

Up to 100 feet. Start with the included 25 foot cable and stack 25 and 50 foot CAT5 extenders with a coupler at each join, up to that maximum run between the radar and the display.
