Sports Radar SRDL-36-KIT Radar Gun and 4 Inch Display Kit
The Sports Radar SRDL-36-KIT is a complete speed pitch package built around the SR3600 radar gun and a three digit 4 inch red LED display. The gun clocks the baseball, the cable carries the reading to the board, and the number goes up where the pitcher, the coach and everyone waiting in line can see it. It is put together for indoor cages, recreation centers, school fundraisers and carnival speed pitch booths, and it is the kit built to work with inflatable speed pitch games.

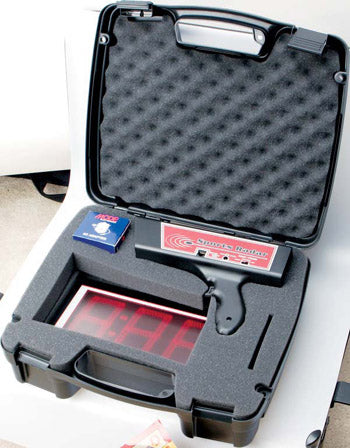

Everything needed to run the setup is here except batteries: the gun, the display, a 9V wall adapter, a 25 foot cable, a table top stand, a tuning fork for a field accuracy check and a hard case to move it all. Stepping up to the SRDL-38-KIT buys a longer range gun, not a bigger screen. Both kits use the same 4 inch display.
The Gun and the Display Work as One System
The SR3600 carries a RadarDataPort, a serial output that pushes every reading down the included 25 foot RJ45 cable to the DL431-R display at 1200 baud. There is no app, no pairing and no wireless link to lose. Plug the cable in at both ends, power the display, and the speed lands on the board at the same moment it lands on the gun's own 3 digit LCD.
When the board needs to sit further away, shielded RJ45 extenders in 25 and 50 foot lengths stack to a 100 foot maximum run with a coupler at each join. The display can also pull its power from the gun through that same cable, which takes one outlet out of the setup. That arrangement caps the run at 50 feet, requires the gun to be on external power rather than batteries, and can step display brightness down.
Why This Is the Kit for Inflatable Speed Pitch
The SR3600 reads a baseball out to about 60 feet, and inside an inflatable speed pitch game that short reach is the feature rather than the limitation. A longer range gun keeps looking past the target and picks up movement off the inflatable structure and whatever sits behind it, which puts numbers on the board that have nothing to do with the pitch that was just thrown. A 60 foot ceiling keeps the gun's attention on the throw and the target.
The SRDL-38-KIT is not compatible with inflatable games for exactly that reason. If the booth is an inflatable, this is the kit to buy. If the setup is an open outdoor field with the operator standing well back from the plate, the -38 kit is the right tool instead.
What the 4 Inch Display Adds
The DL431-R lights three 4 inch red LED digits and reads up to 999, so no pitch is going to run it out of room. In shaded light the digits stay legible from roughly 200 feet, and the viewing angle is wide enough that a line of people standing off to one side still gets the number.
This is the indoor and shaded area board in the line. LED digits wash out in direct sunlight, the enclosure is not waterproof and the power supply is built for indoor use, so plan on a cage, a gym, a tent or a covered booth. A 1/4-20 thread sits on the bottom of the case and two hanging brackets sit on the back. The included table top stand covers the most common setup of all, which is the board propped on a table beside the line.
Running the SRDL-36-KIT With One Person
The gun has two modes. Trigger mode reads on demand. Continuous mode runs hands free from a tripod, which is how a single player clocks their own throws, and it holds a three second gap between readings so a catcher's throw back does not get counted as a pitch. The gun threads onto any standard 1/4-20 camera tripod, and a 52 inch tripod is available separately.
An audible tone confirms each capture so nobody has to watch the screen, and the gun's own readout flashes when the batteries run down. Holding the trigger while powering the gun on switches the reading between MPH and Km/H.
Who This Radar Gun Kit Is For
Indoor training facilities and cages that want speeds on a board instead of on the back of a gun. Recreation centers and youth baseball programs running speed contests. Booster clubs and school groups working a speed pitch booth at a fundraiser or a fair. Event operators running an inflatable game. The same gun and display pairing also serves small indoor tennis and volleyball setups where a serve or a spike is what gets measured.
What this kit is not is a scouting rig. A coach standing behind the backstop at a full size field is usually more than 60 feet from the release point, and that job belongs to the SR3800 kits.
Sports Radar SRDL-36-KIT Specifications
- Radar gun: SR3600 with RadarDataPort serial output
- Gun speed range: 10 to 200 MPH (16 to 322 Km/H), MPH or Km/H selectable
- Gun range on a ball: 60 feet typical, strongest between 15 and 100 MPH
- Gun accuracy: 3 percent, 1 MPH or 1 Km/H resolution
- Radar band: X-Band 10.525 GHz
- Gun readout: 3 digit LCD
- Gun modes: trigger and continuous, with a three second delay between continuous readings
- Gun dimensions: 10-3/4 in long x 2-3/4 in wide x 7-1/4 in high
- Gun power: two 9V alkaline batteries or an external power jack
- Gun battery life: over 5 hours continuous, typically 50 hours in trigger mode
- Display: DL431-R, three 4 inch red LED digits, reads to 999
- Display viewing distance: about 200 feet in shaded light
- Display enclosure: 12-1/4 in wide x 6-3/8 in high x 1-1/2 in deep, 1.5 lb
- Display input: RJ45 8/8 jack, RS232 at 1200 baud
- Display power: 6 to 14 VDC, 0.5 A at high brightness or 0.3 A at normal brightness
- Display mounting: 1/4-20 thread on the bottom plus two wall hanging brackets on the back
- Cable: 25 foot shielded RJ45, extendable to a 100 foot maximum run
- Operating temperature: 40 to 110 F
- 1 year limited warranty
- Made in the USA
What's Included
- SR3600 radar gun
- DL431-R three digit 4 inch red LED display
- 9V wall power adapter
- 25 foot RJ45 cable
- 65 MPH tuning fork
- Table top display stand
- Hard carry case
Batteries are not included. The gun takes two standard 9V alkaline cells, and the 9V wall adapter in the kit powers the display. A tripod is separate as well; every Sports Radar gun uses a standard 1/4-20 camera thread.
Frequently Asked Questions
Which radar gun is in the SRDL-36-KIT?
The SR3600. It reads a baseball out to about 60 feet, tops out at 200 MPH, resolves to 1 MPH and carries the data port that drives the display. The SRDL-38-KIT swaps in an SR3800 with roughly double the reach on a ball plus a release and plate reading.
Will this kit work with an inflatable speed pitch game?
Yes. This is the kit meant for inflatable games and carnival speed pitch booths. The gun's 60 foot ball range keeps it from reading movement off the inflatable structure behind the target. The SRDL-38-KIT is explicitly not compatible with inflatables, so a booth operator should stay with this one.
Where should the gun be positioned?
As close to the line of the ball's flight as the setup allows, and inside 60 feet of the release point. Every degree off that line reads low, which is the most common reason a working gun looks broken. Staying within roughly 10 degrees of the ball's path keeps the error small, and vertical angle counts the same way, so a gun on the ground shooting up at a mound will read under.
Are batteries included?
No. The gun takes two standard 9V alkaline batteries. The 9V adapter in the kit powers the display, and the gun has its own external power jack if you would rather run it off the wall for a permanent booth.
Does the gun need to be calibrated?
No. There is no user calibration on these guns, which is why the tuning fork in the kit is a verification tool rather than an adjustment. Strike the fork, point the gun at it in trigger mode, and it should read 65 MPH. If it does, the gun is measuring correctly.
How far can the display sit from the gun?
The kit includes 25 feet of cable. Shielded 25 and 50 foot extenders stack to a 100 foot maximum run with a coupler at each join. If the display is drawing its power from the gun instead of from the wall adapter, keep the run to 50 feet.
